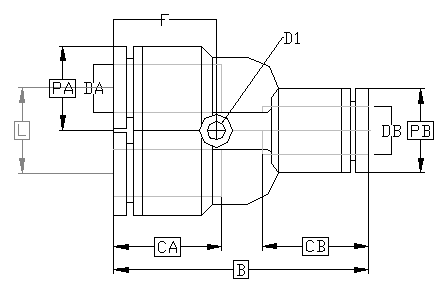

Model RB Dimensions:
Dimensions for Reference Use Only: Imperial fittings in
Inch, Metric fittings in mm, U.S.O.
|
Part
No
|
B
|
DA
|
DB
|
D1
|
F
|
PA
|
PB
|
X1
|
Y1
|
X2
|
Y2
|
WEIGHT
(g)
|
|
RB 5/32-1/8 |
1.33
|
1/8 |
5/32
|
0.12
|
0.57
|
0.41
|
0.41
|
0.38
|
0.46
|
0.38
|
0.46
|
6.3
|
|
RB-3/16-5/32
|
1.42
|
5/32
|
3/16
|
0.08
|
0.57
|
0.45
|
0.42
|
0.43
|
0.51
|
0.38
|
0.46
|
6.3
|
|
RB-1/4-5/32
|
1.44
|
5/32
|
1/4
|
0.08
|
0.57
|
0.52
|
0.42
|
0.47
|
0.55
|
0.38
|
0.46
|
7.0
|
|
RB-1/4-3/16
|
1.45
|
3/16
|
1/4
|
0.08
|
0.58
|
0.52
|
0.44
|
0.47
|
0.55
|
0.43
|
0.51
|
7.2
|
|
RB-5/16-1/4
|
1.68
|
1/4
|
5/16
|
0.12
|
0.69
|
0.58
|
0.52
|
0.54
|
0.61
|
0.47
|
0.55
|
9.0
|
|
RB-3/8-1/4
|
1.82
|
1/4
|
3/8
|
0.12
|
0.64
|
0.72
|
0.52
|
0.65
|
0.74
|
0.47
|
0.55
|
12.5
|
|
RB-3/8-5/16
|
1.98
|
5/16
|
3/8
|
0.16
|
0.79
|
0.72
|
0.58
|
0.65
|
0.74
|
0.54
|
0.61
|
13.3
|
|
RB-1/2-3/8
|
2.12
|
3/8
|
1/2
|
0.16
|
0.85
|
0.84
|
0.72
|
0.79
|
0.88
|
0.65
|
0.74
|
22.4
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RB-6-4
|
36.7
|
4
|
6
|
2.0
|
14.5
|
13.1
|
10.7
|
11.5
|
13.6
|
9.7
|
11.6
|
6.5
|
|
RB-8-6
|
42.4
|
6
|
8
|
3.0
|
17.2
|
14.7
|
13.1
|
13.6
|
15.6
|
11.5
|
13.6
|
9.0
|
|
RB-10-8
|
50.2
|
8
|
10
|
4.0
|
20.1
|
18.4
|
14.7
|
16.0
|
18.3
|
13.6
|
15.6
|
13.5
|
|
RB-12-10
|
54.6
|
10
|
12
|
4.0
|
22.4
|
20.0
|
18.4
|
18.5
|
21.4
|
16.0
|
18.3
|
21.7
|
 |
|
