Part No.
|
Unit Price
|
Valve Picture
|
Port Size
(NPT)
|
Voltage Options
|
Electrical Entry
Options
|
Port No/ Position/Solenoid
|
Cv
Flow Rate
|
Response Time
|
Power Consumption
|

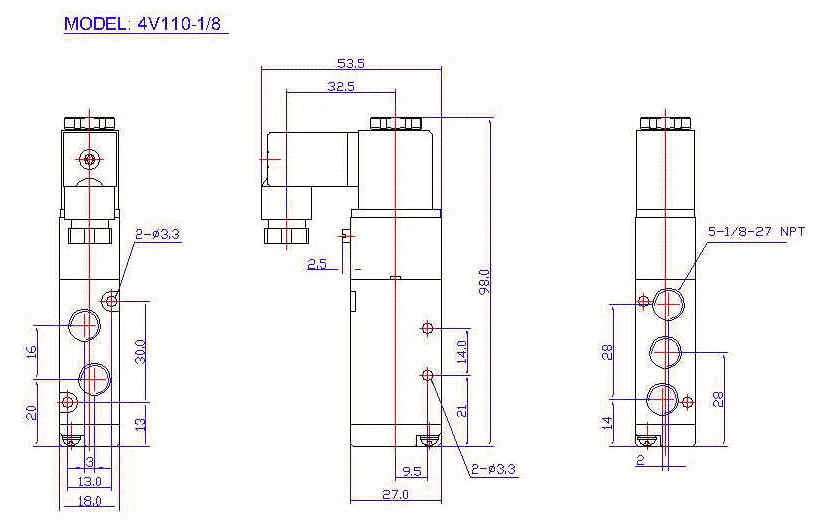

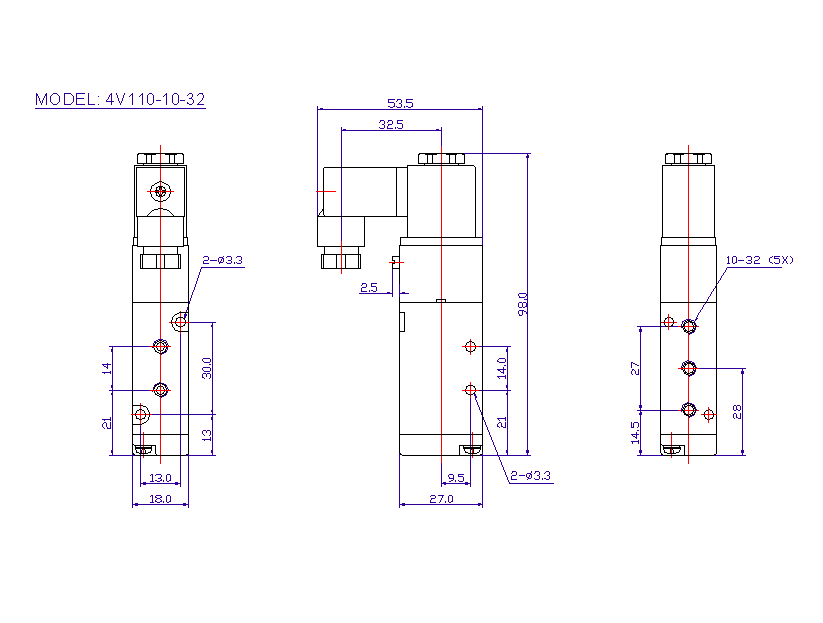

| 4V110-1/8
|
$25.25 |
|
1/8 NPT
|
1=12VDC
2=24VDC
2A=24VAC
3=110VAC
4=220VAC
(50/60Hz) |
G=Grommet
D= DIN (with LED indicator) |
5/2/1
Four Way Valve
|
0.67
25 SCFM @100 PSI
|
< 20 ms
|
2.5 W
|
| 4V120-1/8
|
$37.13
|
|
1/8 NPT
|
G=Grommet
D= DIN (with LED indicator) |
5/2/2
Double Solenoid
Four Way Valve
|
0.67
25 SCFM @100 PSI
|
< 20 ms
|
2.5 W
|

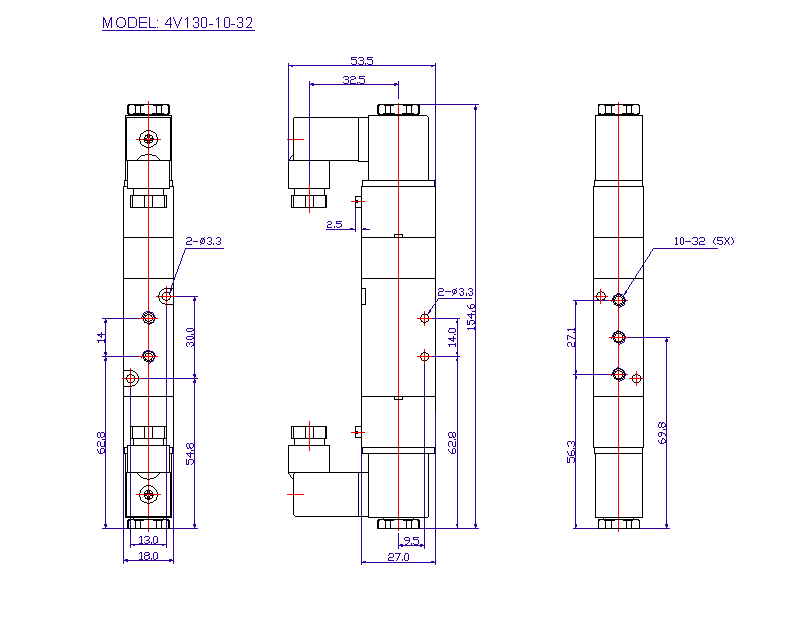

| 4V130-1/8
|
$64.35
|
|
1/8 NPT
|
G=Grommet
D= DIN (with LED indicator) |
5/3/2
Double Solenoid
Three Position, Closed Center
Four Way Valve
|
0.67
25 SCFM @100 PSI
|
< 20 ms
|
2.5 W
|
