Part No.
|
Unit Price
|
Valve Picture
|
Port Size
(NPT)
|
Voltage Options
|
Electrical Entry
Options
|
Port No/ Position/Solenoid
|
Cv
Flow Rate
|
Response Time
|
Power Consumption
|

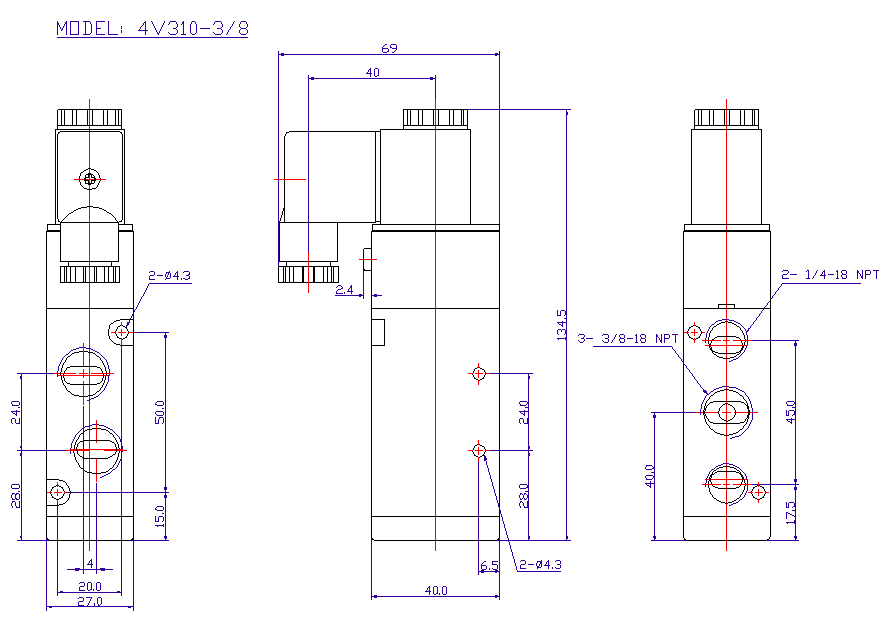

4V310-3/8
|
$32.67
|
|
3/8 (inlet/outlet) 1/4
(Exhaust)
|
1=12VDC
2=24VDC
2A=24VAC
3=110VAC
4=220VAC
(50/60Hz) |
G=Grommet
D= DIN (with LED indicator) |
5/2/1
Four Way Valve
|
1.68
80 SCFM @100 PSI
|
< 20 ms
|
3-4.8 W
|

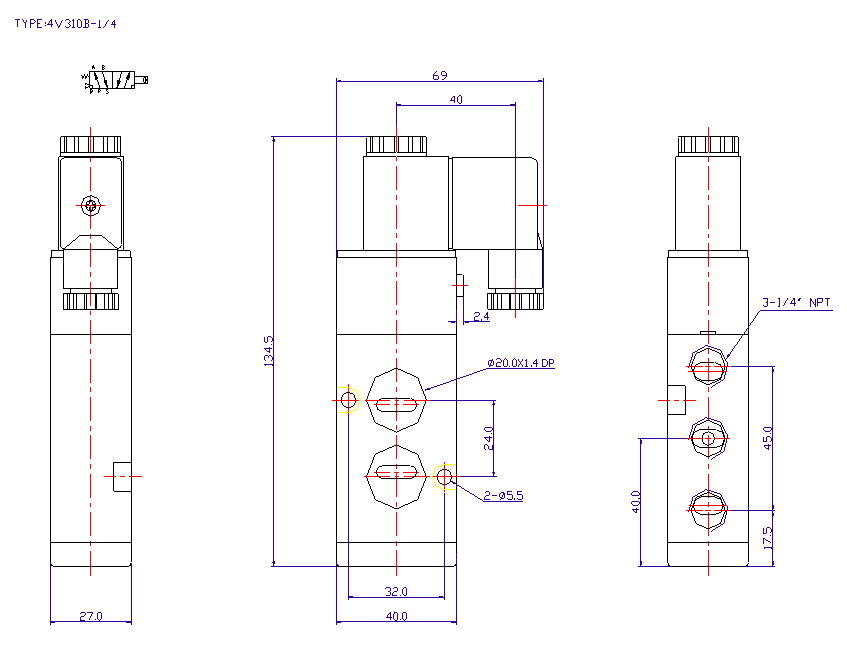

4V310B-1/4

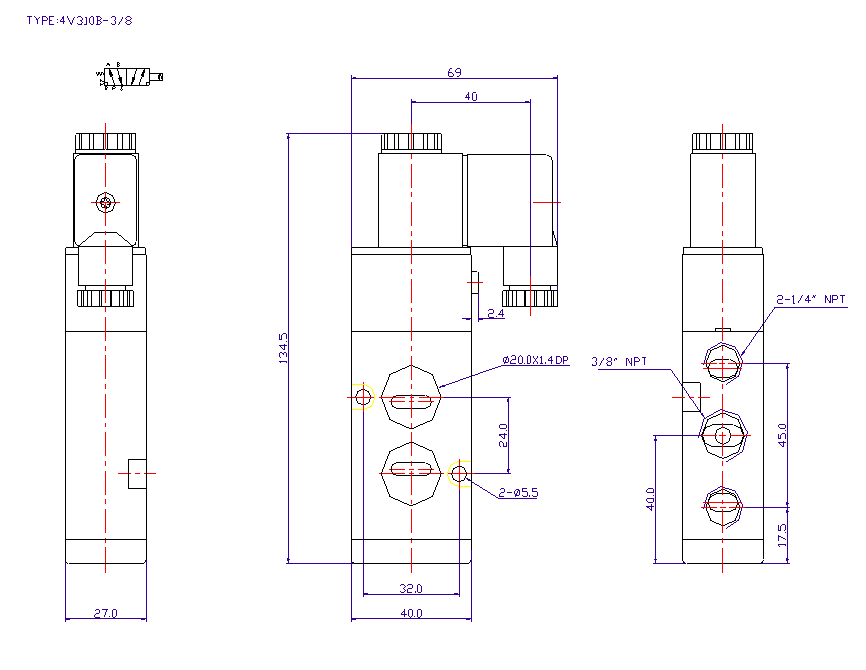

4V310B-3/8
|
$37.62
|
|
1/4 (inlet)
1/4 (Exhaust)
3/8 (inlet)
1/4 (Exhaust)
|
5/2/1
Actuator Mount
Four Way Valve
|
1.68
80 SCFM @100 PSI
|
< 20 ms
|

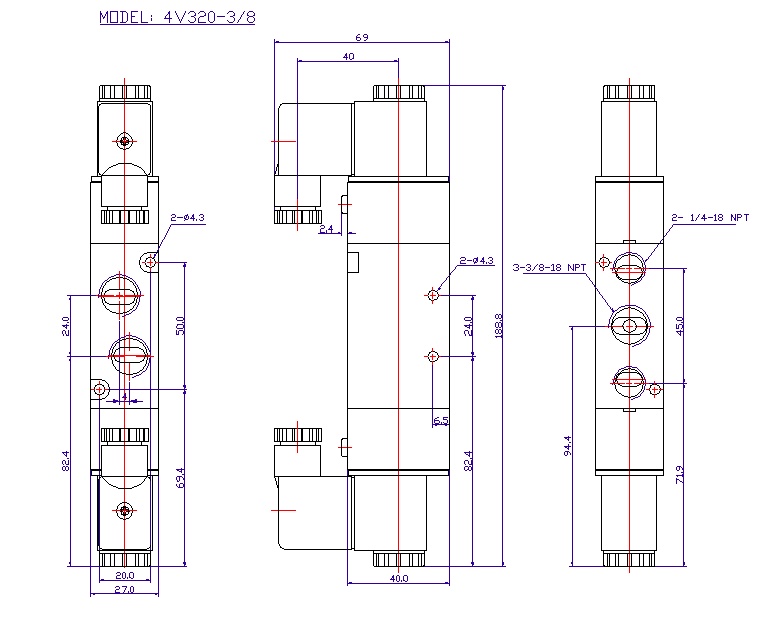

4V320-3/8
|
$45.54
|
|
3/8 (inlet/outlet) 1/4
(Exhaust)
|
5/2/2
Double Solenoid
Four Way Valve
|
1.68
80 SCFM @100 PSI
|
< 20 ms
|
4V330C-3/8
|
$88.61
|
|
3/8 (inlet/outlet) 1/4
(Exhaust)
|
5/3/2
Double Solenoid
Three Position, Closed Center
Four Way Valve
|
1.68
80 SCFM @100 PSI
|
< 20 ms
|
