Part No.
|
Unit Price
|
Valve Picture
|
Port Size
(NPT)
|
Voltage Options
|
Electrical Entry
Options
|
Port No/ Position/Solenoid
|
Cv
Flow Rate
|
Response Time
|
Power Consumption
|
|

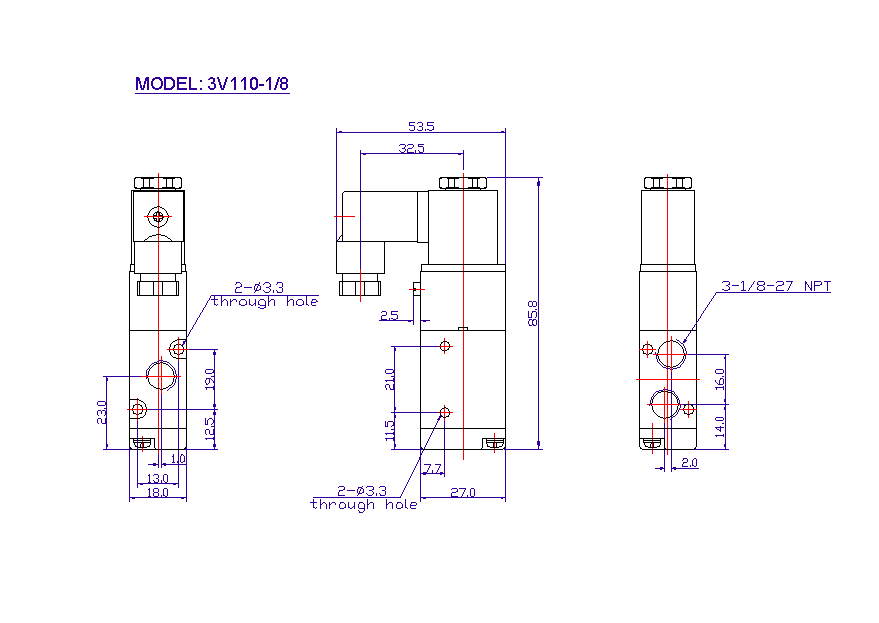

3V110-1/8
|
$24.26
|
|
1/8 NPT
|
1=12VDC
2=24VDC
2A=24VAC
3=110VAC
4=220VAC
(50/60Hz) |
G=Grommet
D= DIN (with LED indicator) |
3/2/1
Three Way Valve
|
0.67
|
< 20 ms
|
2.5 W
|
|

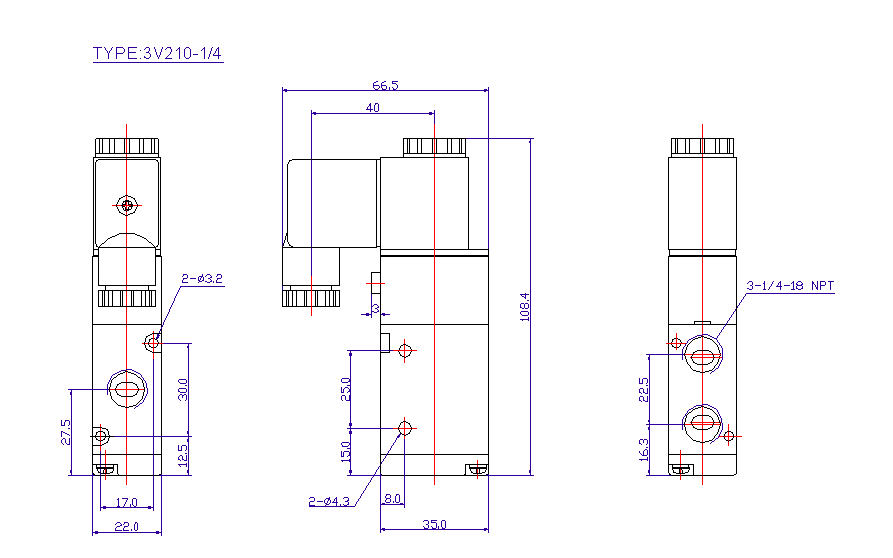

3V210-1/4
|
$24.26
|
1/4" Inlet & Outlet
1/8" Exhaust
|
G=Grommet
D= DIN (with LED indicator) |
3/2/1
Three Way Valve
|
0.78
|
< 20 ms
|
3-4.8 W
|
|
3V310-1/4
|
$32.67
|
3/8" Inlet & Outlet
1/4" Exhaust
|
G=Grommet
D= DIN (with LED indicator) |
3/2/1
Three Way Valve
|
1.68
|
< 20 ms
|
3-4.8 W
|
|
3V410-1/4
|
$56.93
|
1/2 NPT
|
G=Grommet
D= DIN (with LED indicator) |
3/2/1
Three Way Valve
|
2.79 |
< 20 ms
|
3-4.8 W
|
